Customized CV

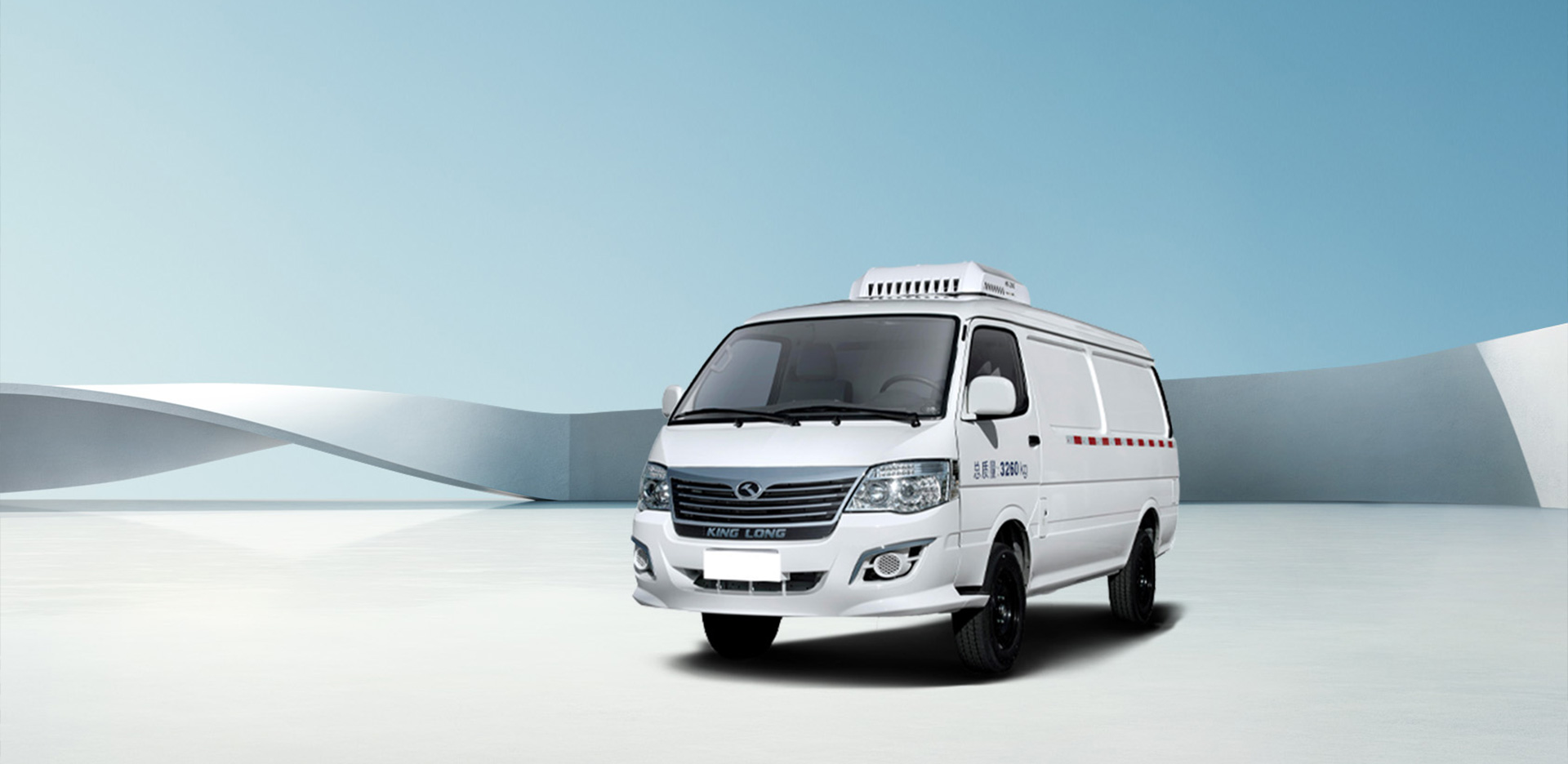

Range Extender Cold Chain Van
Long Range Cold Chain Delivery Option

Compared to traditional energy vans, the custom cold chain vans equipped with the GETEC range extension system prioritize pure electric power, supplemented by range extension charging for continuous operation. They simultaneously address urban and intercity cold chain distribution needs, saving operational costs while effectively resolving issues of range anxiety.

Features
  • Max. Range (WLTC): 500+km

  • Max. Capacity: 5+m³

  • Refrigeration Level:F

  • Battery Mode:Fast Charging

Advantages

The range extender system, composed of three core components developed by GETEC, is adaptable to various of chassis platforms. It aims to create a “light-duty and high-efficiency drivetrain system” characterized by higher efficiency, lower fuel consumption and longer driving range.




Parameters


Vehicle Parameter
Wheelbase2890 mm
Vehicle size L×W×H5300×1700×2250 mm
Cargo Size L×W×H2650×1360×2500 mm
Cargo Capacity5+ m³
Overall Mass3260 kg
Curb Mass2160 kg
Max. Speed80 km/h
Max. Range (WLTC)500 km/h
Range Extender System
MotorType:PMSM
Peak Power:80 kW
Range ExtenderEngine:4-cylinder,1.4L
Generator:GETEC -40℃~+185℃ water-cooled generator
Fuel Tank:High pressure fuel tank
ControllerVehicle Control Unit:GETEC VCU
All-in-one Control Unit:Espiritek
BatteryBattery Type:CATL LFP Battery
Battery Capacity:42 kWh
Charging Mode:Fast Charging
Refrigeration System
Refrigerator TypeSplit top-mounted inverter  refrigerator
Operation methodQuantity Control Panel
Insulation materialPolyurethane
Cabin thickness50~60mm
Refrigeration UnitBlack Shield HE-280 Electric Control Customized Version (Adaptation)
Refrigeration levelF
Control UnitInovance electric control
Chassis
BrakeFront disc rear drum
SuspensionTorsion bar spring independent suspension/ steel spring non-independent suspension
Tires195R15LT Steel
Configuration
StandardAll-inclusive cab, fast charging, standard comfort seats, USB power, 7-inch color LCD combination instrumentation, low-speed pedestrian alarm reminder, maintenance-free battery, ABS, T-BOX (new energy), front fog lights + cornering auxiliary lighting.
Optionalluminum alloy rims, 8-inch HD touch screen + reverse camera, daytime running lights, widened rearview mirror.

*The specific parameters are subject to the vehicle announcement
