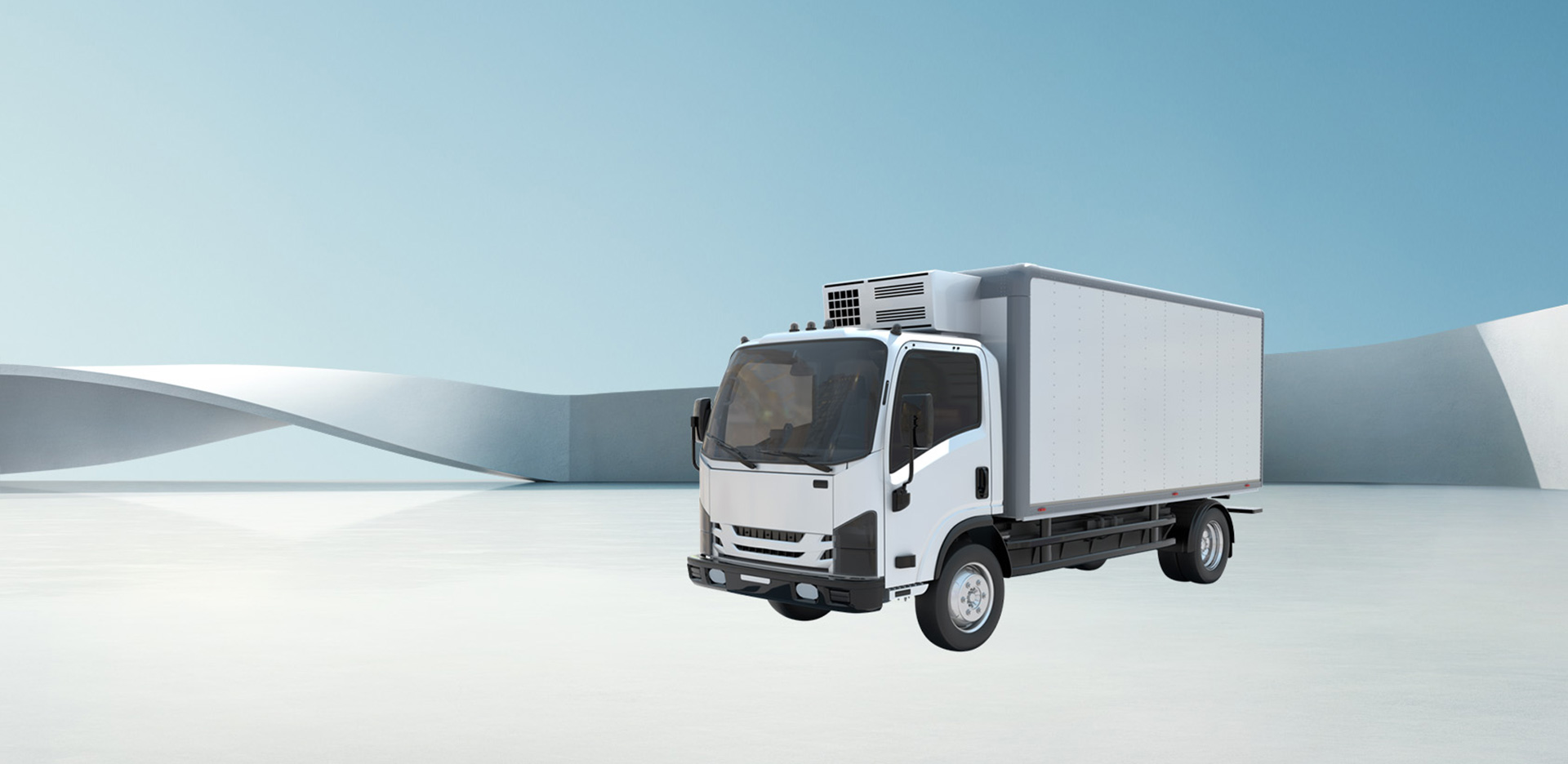

The range extension cold chain light truck customized and developed by GETEC has significant advantages over traditional fuel vehicles in terms of range and operating costs. This is thanks to the installation the entire set of range extender system, electric drive system, and vehicle control unit of GETEC, which perfectly solves the high operating costs of intercity cold chain distribution.
Max. Range (WLTC)：450+km
Max. Capacity：17+m³
Fuel Tank Capacity：60L
Battery Mode：Fast Charging
The range extender system, composed of three core components developed by GETEC, is adaptable to various of chassis platforms. It aims to create a “light-duty and high-efficiency drivetrain system” characterized by higher efficiency, lower fuel consumption and longer driving range.
| Vehicle Parameter | |
| Wheelbase | 3300 mm |
| Vehicle size LxWxH | 5995×2260×3240 mm |
| Cargo Size LxWxH | 4020×2100×1900 mm |
| Cargo Capacity | 17 m³ |
| Overall Mass | 4495 kg |
| Curb Mass | 3700 kg |
| Max. Speed | 90 km/h |
| Max. Range(WLTC) | 450+km |
| Range Extender System | |
Motor | Type:PMSM (Integrated Axle) |
| Rated / Peak Power:65 / 120 kW | |
| Rated / Peak Torque:160 / 360 N.m. | |
Range Extender | Rated Power:75kW |
| Fuel Tank Capacity:60 L | |
| Controller | Vehicle Control Unit (VCU):GETEC VCU |
| All-in-one Control Unit:lnovance 3Gen Five-in-one | |
| Battery | Type:LFP /GOTION battery cell |
| Charging Mode:60 kWh | |
| Charging Mode:Fast Charging | |
| Body Parameter | |
| Temp. Range | -30℃~20℃ |
| Refrigeration capacity | 0℃ 5700W |
| 18℃ 3000W | |
| Voltage | 24V |
| Compresso | Cryogen Weight:R404A |
| Speed Range:1.4kg | |
| Ambient Temp:2000-6000rpm | |
| Voltage:-40℃~80℃ | |
| Platform:540V | |
| Defrosting | Hot air defrosting |
| Chassis | |
| Brake | Air brakes/front and rear drum |
| F/R Axle | 2.0T /3.5T Handel maintenance-free integrated e-axle(speed ratio 16.04) |
| Suspension | 3/3+2 |
| Tires | 7.00R16 Steel |
| Configuration | |
| Standard | All-inclusive cab, fast charging, standard comfort seats, USB power, 7-inch color LCD combination instrumentation, low-speed pedestrian alarm reminder, maintenance-free battery, ABS, T-BOX (new energy), front fog lights + cornering auxiliary lighting. |
| Optional | Aluminum alloy rims, 8-inch HD touch screen + reverse camera, daytime running lights, widened rearview mirror. |
*The specific parameters are subject to the vehicle announcement
