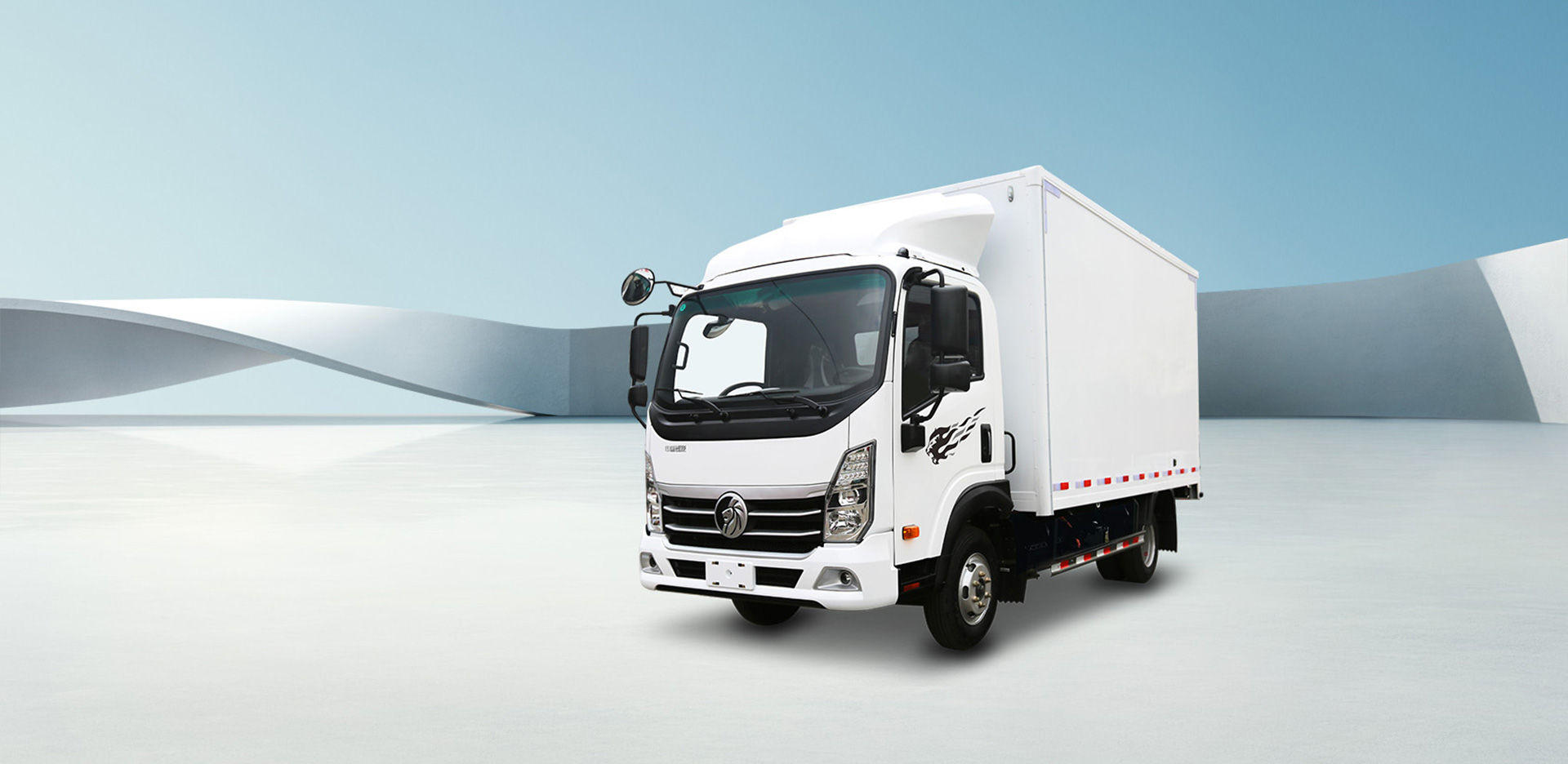

Swappable LCV, developed by GETEC, integrates the chassis EDS, vehicle control unit and exclusive swapping control logic, where providing customers with a set of low-energy, high-efficiency and modular solution for urban logistics.
Max. Range (WLTC)：260+km
Max. Capacity：20+m³
Battery Mode: Charging/Swapping
Quick Battery Swapping：3.5min
Core Technology
Efficient Power
Safety & Reliability
Long Range
Comfortable
GETEC’s self-developed battery swapping mechanism enable quick battery swapping within 3.5 minutes, which solves hard charging and slow charging issues. To ensure the power and economic performance, vehicles are calibrated in all climates conditions for excellent drivetrain selection.
GOTION HIGH-TECH high energy density battery cell + 3.5T HANDE e-axle. The new drivetrain with high torque, high efficiency, strong power and loading.
3E waterproof and dustproof grade up to IP67. Passed more than 300 testing and verification. Adopting hydraulic power hydraulic braking system, which makes the vehicle more stable and safer.
GOTION HIGH-TECH high energy density battery cell, matching battery heating and air-cooling system to improve the environment adaptability. 3.5 minutes battery swapping and optional DC fast charging. The charging time is less than 30 minutes from 30% to 80%. The modes operation, battery swapping and fast charging, guarantees the improvement of operation efficiency.
The third generation of German cab, fully automated precision welding process, double cathode battery primer. The vehicle with lightweight design: overall molded high strength frame, high load bearing less piece of phoenix, aluminum alloy support.
| Vehicle Parameter | |
| Wheelbase | 3360 mm |
| Vehicle size LxWxH | 5995×2200×3260 mm |
| Cargo Size LxWxH | 4150×2100×2300 mm |
| Cargo Capacity | 20+ m³ |
| Overall Mass | 4495 kg |
| Curb Mass | 3270 kg |
| Max. Range(WLTC) | 260+ km |
| No-load Max. Speed | 90 km/h |
| Max. Climbing Slope | > 25% |
| Drive Motor | |
| Motor Type | PMSM（Integrated Axle） |
| Peak Power | 120 kW |
| Peak Torque | 325 Nm |
| Controller | |
| Vehicle Control Unit (VCU） | GETEC VCU |
| All-in-one Control Unt | Inovance 3Gen Five-in-one |
| Battery | |
| Battery Type | LFP /GOTION battery cell |
| Battery Capacity | 76.8 kWh |
| Battery Method | Battery Swapping + Fast Charging |
| Swapping Duration | 3.5 min |
| Fast Charging | 30 min (30%==>80%) |
| Chassis | |
| F/R Axle | G015D/3.5t 16.04 e-axle |
| Frame | 200×4-800 |
| Suspension | 3/3+3; 3/5+3 |
| Tires | 7.00R16 LT8PR |
| Brake | hydraulic power hydraulic brakes front and rear drum |
| Configuration | |
| Central locking, electric windows, remote key, multifunction steering wheel, 7-inch multimedia, back-up camera, automatic air conditioning, electric heated rear-view mirror. | |
*The specific parameters are subject to the vehicle announcement
GETEC Battery Swapping Station is able to provide more efficient, intelligent, stable and safe services for light trucks and various battery swapping vehicles, improving the overall operational efficiency.
